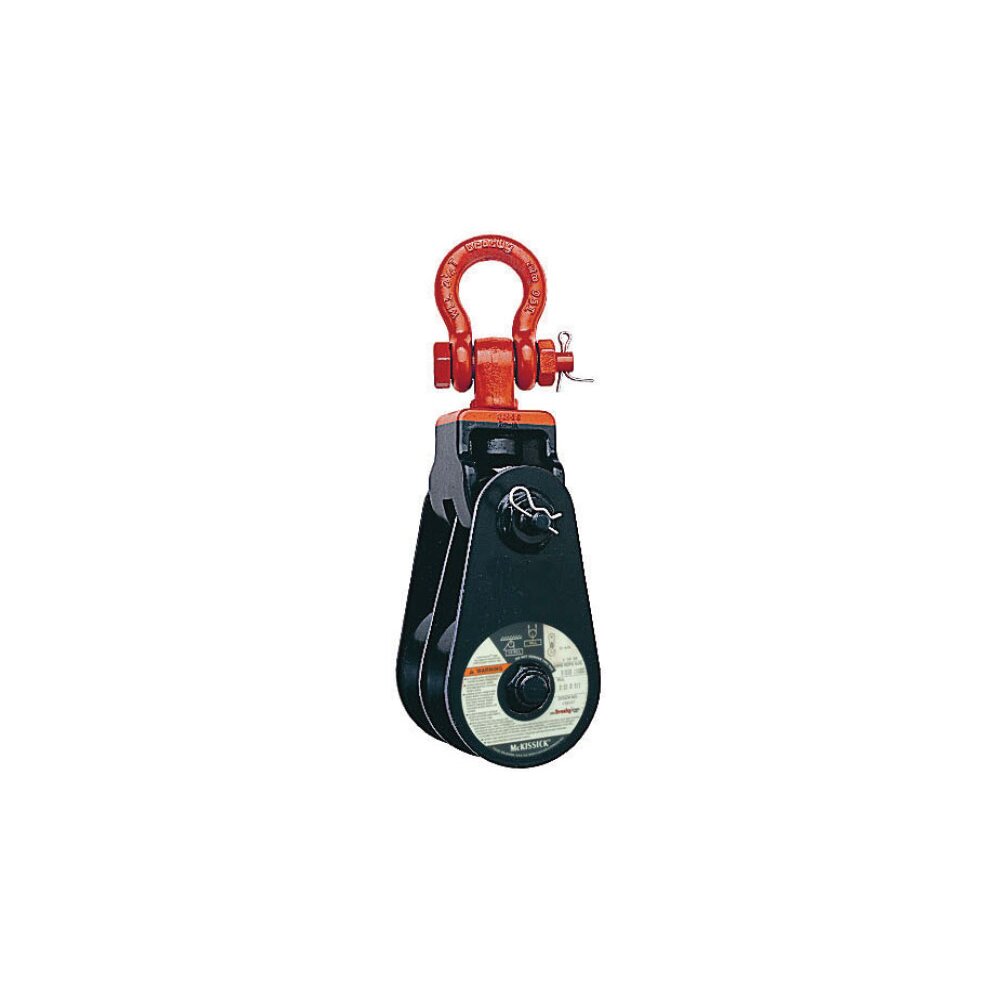

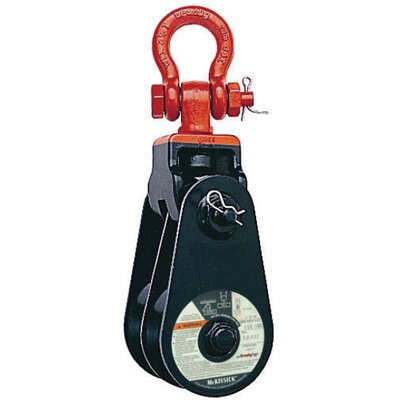

Snatch Block McKissick 409 Double Sheave with Shackle - Light Champion

The McKissick snatch block 409 Light Champion from Crosby is a double sheave snatch block fitted with a shackle. Available from WLL 4  up to 12 T.
Delivered with bronze bushing (BB) and from WLL 12 T also available with roller bearing (RB).

Features:

  • Drop forged swivel hook or swivel shac

Show more

Product number:

The McKissick snatch block 409 Light Champion from Crosby is a double sheave snatch block fitted with a shackle. Available from WLL 4  up to 12 T.
Delivered with bronze bushing (BB) and from WLL 12 T also available with roller bearing (RB).

Features:

  • Drop forged swivel hook or swivel shackle.
  • Can be furnished with bronze bushings or roller bearings.
  • Opening feature permits easy insertion of Wireline in both sheaves with removal of one bolt.
  • Center Pin equipped with pressure lube fittings.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including
    identification, ductilit , design factor, proof load and temperature
    requirements. Importantly, these blocks meet other critical performance
    requirements including fatigue life and material traceability,
    not addressed by ASME B30.26.
  • Material: Forged steel.
  • Safety factor: 4:1
