Working Load Limits shown are for in-line pull.
Recommended for straight line pull.
Fatigue rated at 11/2 times the Working Load Limit at 20,000 cycles.
Standard bolts threaded UNC.
Working Load Limits shown are for in-line pull.
Recommended for straight line pull.
Fatigue rated at 11/2 times the Working Load Limit at 20,000 cycles.
Standard bolts threaded UNC.

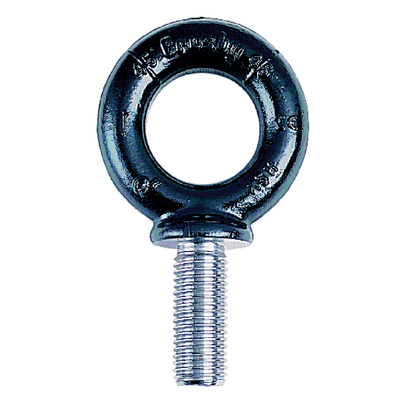

M-279 Metric
|
Stock Code
|
Size
mm |
Working
Load Limit t |

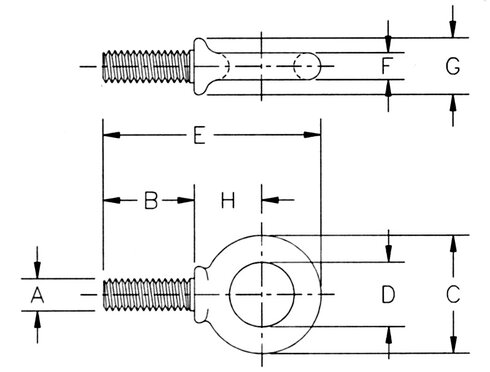

Dimensions (mm)
|
Weight |
|
|
|
|
|
|
|
|
|
B |
C
|
D
|
E |
F
|
G | H | ||
|
11.401045753
|
M6
|
0,2
|
13
|
28.7
|
19.1
|
47 |
4.9
|
13.5 | 19.6 | 0.03 |
|
11.401045789
|
M8
|
0,4
|
13
|
35.1
|
22.4
|
54.6 |
6.4
|
15 | 24.1 | 0.05 |
| 11.401045833 |
M10
|
0,64
|
17
|
41.1
|
25.4
|
64.3 |
7.9
|
17.5 | 26.5 | 0.07 |
| 11.401045869 |
M12
|
1
|
20.5
|
49.5
|
30.2
|
77.7 |
9.7
|
23.1 | 32.8 | 0.11 |
| 11.401045913 |
M16
|
1,8
|
27
|
60.5
|
35.1
|
96 |
12.7
|
28.7 | 38.9 | 0.25 |
| 11.401045995 |
M20
|
2,5
|
30
|
70
|
38.1
|
108 |
16
|
35.1 | 43.4 | 0.42 |
| 11.401046029 |
M24
|
4
|
36
|
95.5
|
51
|
142 |
22.4
|
46 | 58.4 | 1.05 |
| 11.401046038 |
M27
|
5 | 69.8 |
107
|
57.1
|
183 |
24.6
|
52.3 | 59.7 | 1.42 |
|
11.401046075
|
M30
|
6 | 45 |
114
|
63.5 | 171 | 25.4 | 58 | 69.3 | 1.77 |
| 11.401046109 | M36 | 8.5 | 54 | 140 | 76 | 207 | 31.8 | 70 | 83.3 | 3.12 |
| 11.401046118 | M42 | 14 | 95.2 | 159 | 88.9 | 266 | 35 | 76.2 | 91.4 | 4.58 |
| 11.401046127 | M48 | 17.3 | 102 | 194 | 101 | 313 | 46 | 85.9 | 114 | 8.71 |
| 11.401046136 | M64 | 29.5 | 127 | 223 | 114 | 378 | 53.8 | 108 | 140 | 14.74 |
