Standard: BS 463:1958
- Features: High Quality UK Manufactured Wire Rope Socket
- Material: Drop Forged Steel
- Marking: ID code and Manufacturer's symbol
- Finish: Ungalvanised
- Safety factor: 5:1
|

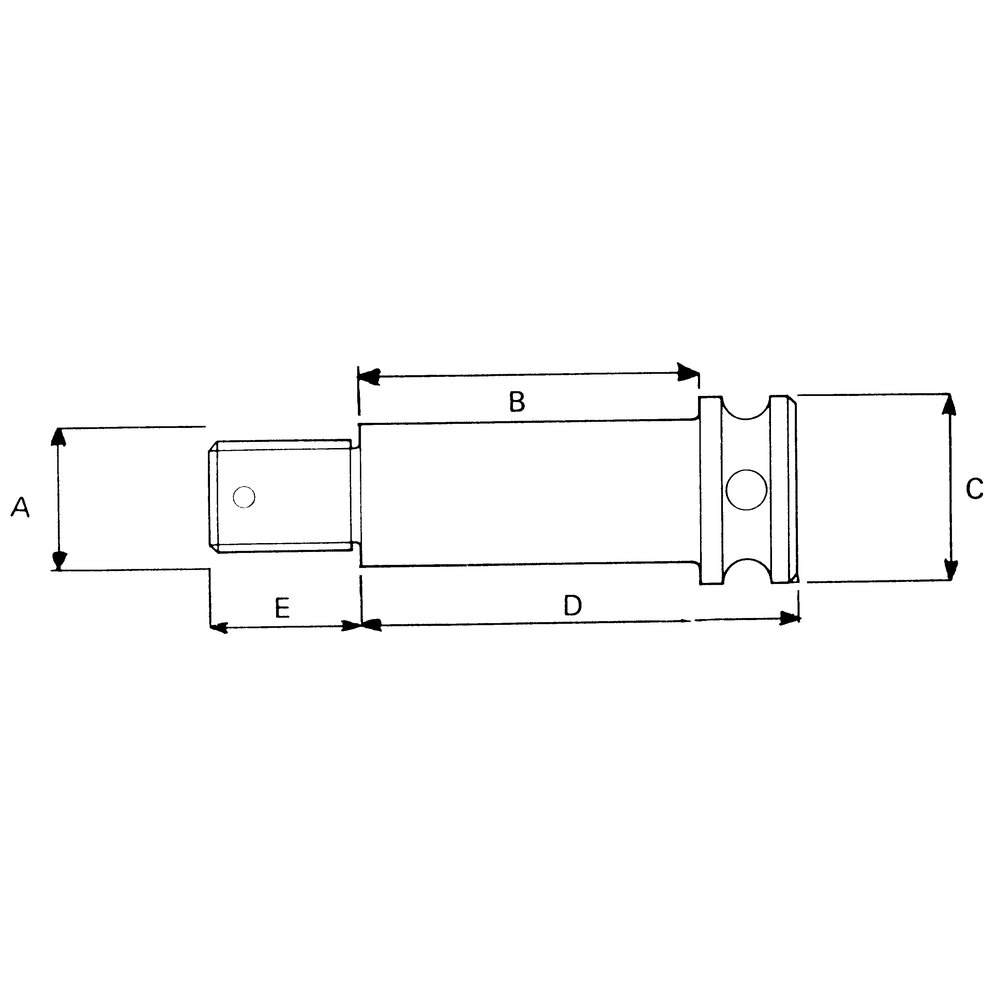

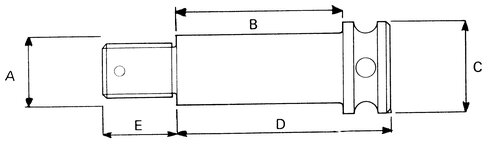

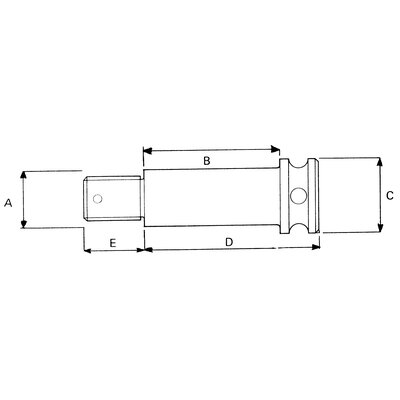

Nominal
Size (dia of rope) |
|
A Dia
|
B
|
C Dia
|
D
|
E
|
Thread B.S.W. |
|
In
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
in
|
|
1/2
|
13
|
20.6
|
49.2
|
31.8
|
68.3
|
24.6
|
9/16
|
|
9/16
|
14
|
20.6
|
49.2
|
31.8
|
68.3
|
24.6
|
9/16
|
|
5/8
|
16
|
23.8
|
60.3
|
34.9
|
79.4
|
26.2
|
5/8
|
|
3/4
|
19
|
28.6
|
71.4
|
41.3
|
96.8
|
31.0
|
3/4
|
|
7/8
|
22
|
31.8
|
81.0
|
44.5
|
106
|
34.9
|
7/8
|
|
1
|
25
|
38.1
|
90.5
|
57.2
|
116
|
38.1
|
1 1/8
|
|
1 1/8
|
29
|
41.3
|
95.3
|
57.2
|
130
|
47.6
|
1 1/4
|
|
1 1/4
|
32
|
47.6
|
113
|
66.7
|
148
|
54.0
|
1 1/2
|
|
1 3/8
|
35
|
57.2
|
137
|
76.2
|
175
|
60.3
|
1 3/4
|
|
1 1/2
|
38
|
57.2
|
137
|
76.2
|
175
|
60.3
|
1 3/4
|
|
1 5/8
|
41
|
57.2
|
137
|
76.2
|
175
|
60.3
|
1 3/4
|
